Lin Engineering NEMA 11, 211 Series

Lin Engineering NEMA 11, 211 Series

      • High Torque in a Compact Size
      • NEMA Size 11 Mounting
      • Custom winding available (No additional cost)
      • Inquire about RoHS version

      Catalog & Specifications
      Frame Size 11-Step size 1.8°- Standard Motor 211

      User Guides
      Step Motor Installation Guide

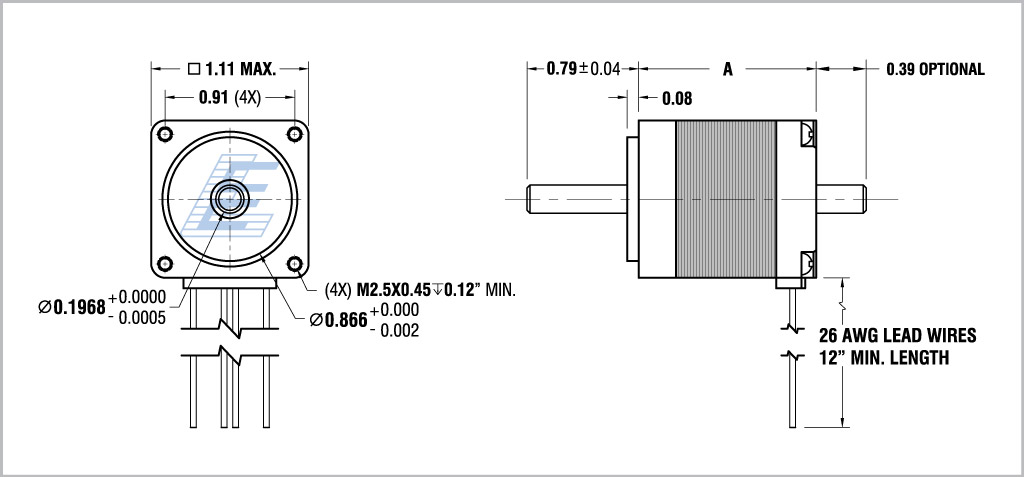

      Dimensions

      MODEL

      MOTOR LENGTH ("A")
      Inches
      mm
      211-13
      1.26"
      32 mm
      211-18
      1.77"
      45 mm
      211-20
      2.01"
      51.1 mm

      Drawings
      211-13 (stp)
      211-18 (stp)

      211-20 (stp)
